The application, derived from wxApp. More...

#include <app.h>

Inheritance diagram for wxStfApp:

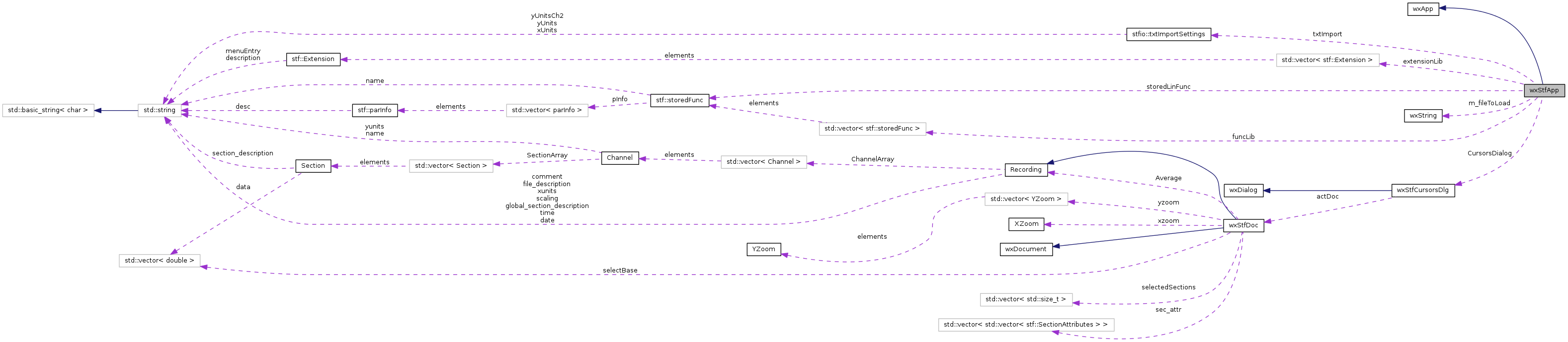

Collaboration diagram for wxStfApp:

Public Member Functions
	wxStfApp ()
	Constructor.
virtual bool	OnInit ()
	Initialise the application.
virtual int	OnExit ()
	Exit the application.
wxStfChildFrame *	CreateChildFrame (wxDocument doc, wxView view)
	Creates a new child frame.
wxStfDoc *	GetActiveDoc () const
	Retrieves the currently active document.
wxStfView *	GetActiveView () const
	Sets the currently active document.
void	ErrorMsg (const wxString &msg) const
	Displays a message box when an error has occured.
void	ExceptMsg (const wxString &msg) const
	Displays a message box when an exception has occured.
void	InfoMsg (const wxString &msg) const
	Displays a message box with information.
bool	get_directTxtImport () const
	Indicates whether text files should be imported directly without showing an import settings dialog.
void	set_directTxtImport (bool directTxtImport_)
	Determines whether text files should be imported directly without showing an import filter settings dialog.
const stfio::txtImportSettings &	GetTxtImport () const
	Retrieves the text import filter settings.
void	set_txtImportSettings (const stfio::txtImportSettings &txtImport_)
	Sets the text import filter settings.
const std::vector < stf::storedFunc > &	GetFuncLib () const
	Retrieves the functions that are available for least-squares minimisation.
stf::storedFunc *	GetFuncLibPtr (std::size_t at)
	Retrieves a pointer to a function for least-squares minimisation.
stf::storedFunc *	GetLinFuncPtr ()
	Retrieves a pointer to a function for least-squares minimisation.
const std::vector < stf::Extension > &	GetExtensionLib () const
	Retrieves the user-defined extension functions.
wxStfCursorsDlg *	GetCursorsDialog () const
	Retrieves the cursor settings dialog.
std::vector< stf::SectionPointer >	GetSectionsWithFits () const
	Retrieves all sections with fits.
void	wxWriteProfileInt (const wxString &main, const wxString &sub, int value) const
	Writes an integer value to the configuration.
int	wxGetProfileInt (const wxString &main, const wxString &sub, int default_) const
	Retrieves an integer value from the configuration.
void	wxWriteProfileString (const wxString &main, const wxString &sub, const wxString &value) const
	Writes a string to the configuration.
wxString	wxGetProfileString (const wxString &main, const wxString &sub, const wxString &default_) const
	Retrieves a string from the configuration.
wxStfDoc *	NewChild (const Recording &NewData, const wxStfDoc *Sender, const wxString &title=wxT("\0"))
	Creates a new child window showing a new document.
void	OnPeakcalcexecMsg (wxStfDoc *actDoc=0)
	Execute all pending calculations.
void	CleanupDocument (wxStfDoc *pDoc)
	Destroys the last cursor settings dialog when the last document is closed.
bool	CloseAll ()
	Closes all documents.
bool	OpenFileSeries (const wxArrayString &fNameArray)
	Opens a series of files. Optionally, files can be put into a single window.
int	GetDocCount ()
	Returns the number of currently opened documents.
void	set_isBars (bool value)
	Determine whether scale bars or coordinates should be shown.
bool	get_isBars () const
	Indicates whether scale bars or coordinates are shown.
void	set_isHires (bool value)
	Determine whether a high or a low resolution should be used for drawing traces.
bool	get_isHires () const
	Indicates whether a high or a low resolution is used for drawing traces.
wxString	GetVersionString () const
	Get a formatted version string.
void	OnNewfromselected (wxCommandEvent &event)
	Open a new window showing all selected traces from all open files.
wxDocManager *	GetDocManager () const
	Access the document manager.
virtual void	OnInitCmdLine (wxCmdLineParser &parser)
virtual bool	OnCmdLineParsed (wxCmdLineParser &parser)
bool	OpenFilePy (const wxString &fNameArray)
	Opens a file in a new window, to be called from Python.
void	OnPythonImport (wxCommandEvent &event)
	Opens a dialog to import a Python module.

Detailed Description

The application, derived from wxApp.

This class is used to set and get application-wide properties, implement the windowing system message or event loop, initiate application processing via OnInit, and allow default processing of events not handled by other objects in the application.

Member Function Documentation

void wxStfApp::CleanupDocument ( wxStfDoc * pDoc )

Destroys the last cursor settings dialog when the last document is closed.

Do not use this function directly. It only needs to be called from wxStfDoc::OnCloseDocument().

Parameters:

pDoc	Pointer to the document that is being closed.

wxStfChildFrame* wxStfApp::CreateChildFrame	(	wxDocument *	doc,
		wxView *	view
	)

Creates a new child frame.

This is called from view.cpp whenever a child frame is created. If you want to pop up a new frame showing a new document, use NewChild() instead; this function will then be called by the newly created view.

Parameters:

doc	A pointer to the document that the new child frame should contain.
view	A pointer to the view corresponding to the document.

Returns:: A pointer to the newly created child frame.

void wxStfApp::ErrorMsg ( const wxString & msg ) const [inline]

Displays a message box when an error has occured.

You can use this function from almost anywhere using wxGetApp().ErrorMsg( wxT( "Error abc: xyz" ) );

Parameters:

msg	The message string to be shown.

void wxStfApp::ExceptMsg ( const wxString & msg ) const [inline]

Displays a message box when an exception has occured.

You can use this function from almost anywhere using wxGetApp().ExceptMsg( wxT( "Exception description xyz" ) );

Parameters:

msg	The message string to be shown.

bool wxStfApp::get_directTxtImport ( ) const [inline]

Indicates whether text files should be imported directly without showing an import settings dialog.

Returns:: true if text files should be imported directly, false otherwise.

bool wxStfApp::get_isBars ( ) const [inline]

Indicates whether scale bars or coordinates are shown.

Returns:: true for scale bars, false for coordinates.

bool wxStfApp::get_isHires ( ) const [inline]

Indicates whether a high or a low resolution is used for drawing traces.

Returns:: true for high resolution, false for low resolution.

wxStfDoc* wxStfApp::GetActiveDoc ( ) const

Retrieves the currently active document.

Returns:: A pointer to the currently active document.

wxStfView* wxStfApp::GetActiveView ( ) const

Sets the currently active document.

Parameters:

pDoc	A pointer to the currently active document. Retrieves the currently active view.

Returns:: A pointer to the currently active view.

wxStfCursorsDlg* wxStfApp::GetCursorsDialog ( ) const [inline]

Retrieves the cursor settings dialog.

Returns:: A pointer to the cursor settings dialog.

int wxStfApp::GetDocCount ( ) [inline]

Returns the number of currently opened documents.

Returns:: The number of currently opened documents.

wxDocManager* wxStfApp::GetDocManager ( ) const [inline]

Access the document manager.

Returns:: A pointer to the document manager.

const std::vector< stf::Extension >& wxStfApp::GetExtensionLib ( ) const [inline]

Retrieves the user-defined extension functions.

Returns:: A vector containing the user-defined functions.

const std::vector<stf::storedFunc>& wxStfApp::GetFuncLib ( ) const [inline]

Retrieves the functions that are available for least-squares minimisation.

Returns:: A vector containing the available functions.

stf::storedFunc* wxStfApp::GetFuncLibPtr ( std::size_t at ) [inline]

Retrieves a pointer to a function for least-squares minimisation.

Returns:: A vector containing the available functions.

stf::storedFunc* wxStfApp::GetLinFuncPtr ( ) [inline]

Retrieves a pointer to a function for least-squares minimisation.

Returns:: A vector containing the available functions.

std::vector<stf::SectionPointer> wxStfApp::GetSectionsWithFits ( ) const

Retrieves all sections with fits.

Returns:: A vector containing pointers to all sections in which fits have been performed

const stfio::txtImportSettings& wxStfApp::GetTxtImport ( ) const [inline]

Retrieves the text import filter settings.

Returns:: A struct with the current text import filter settings.

wxString wxStfApp::GetVersionString ( ) const

Get a formatted version string.

Returns:: A version string (stimfit x.y.z, release/debug build, date).

void wxStfApp::InfoMsg ( const wxString & msg ) const [inline]

Displays a message box with information.

You can use this function from almost anywhere using wxGetApp().InfoMsg( wxT( "Info xyz" ) );

Parameters:

msg	The message string to be shown.

wxStfDoc* wxStfApp::NewChild	(	const Recording &	NewData,
		const wxStfDoc *	Sender,
		const wxString &	title = `wxT("\0")`
	)

Creates a new child window showing a new document.

Parameters:

NewData	The new data to be shown in the new window.
Sender	The document that was at the origin of this new window.
title	A title for the new document.

Returns:: A pointer to the newly created document.

virtual int wxStfApp::OnExit ( ) [virtual]

Exit the application.

Does nothing but calling the base class's wxApp::OnExit().

Returns:: The return value of wxApp::OnExit().

virtual bool wxStfApp::OnInit ( ) [virtual]

Initialise the application.

Initialises the document manager and the file-independent menu items, loads the user-defined extension library and the least-squares function library, parses the command line and attempts to open a file if one was given at program startup by either double-clicking it or as a command-line argument.

Returns:: true upon successful initialisation, false otherwise.

void wxStfApp::OnNewfromselected ( wxCommandEvent & event )

Open a new window showing all selected traces from all open files.

Parameters:

event The associated menu event

void wxStfApp::OnPeakcalcexecMsg ( wxStfDoc * actDoc = 0 )

Execute all pending calculations.

Whenever settings that have an effect on measurements, such as cursor positions or trace selections, are modified, this function needs to be called to update the results table.

void wxStfApp::OnPythonImport ( wxCommandEvent & event )

Opens a dialog to import a Python module.

Parameters:

event The associated menu event

bool wxStfApp::OpenFilePy ( const wxString & fNameArray )

Opens a file in a new window, to be called from Python.

Parameters:

fNameArray An array of file names to be opened.

Returns:: true upon successful opening, false otherwise.

bool wxStfApp::OpenFileSeries ( const wxArrayString & fNameArray )

Opens a series of files. Optionally, files can be put into a single window.

Parameters:

fNameArray An array of file names to be opened.

Returns:: true upon successful opening of all files, false otherwise.

void wxStfApp::set_directTxtImport ( bool directTxtImport_ ) [inline]

Determines whether text files should be imported directly without showing an import filter settings dialog.

Parameters:

directTxtImport_ Set to true if text files should be imported directly, false otherwise.

void wxStfApp::set_isBars ( bool value ) [inline]

Determine whether scale bars or coordinates should be shown.

Parameters:

value Set to true for scale bars, false for coordinates.

void wxStfApp::set_isHires ( bool value ) [inline]

Determine whether a high or a low resolution should be used for drawing traces.

Will attempt to draw at most 50,000 points per trace.

Parameters:

value Set to true for high resolution, false for low resolution.

void wxStfApp::set_txtImportSettings ( const stfio::txtImportSettings & txtImport_ ) [inline]

Sets the text import filter settings.

Parameters:

txtImport_ A struct with the new text import filter settings.

int wxStfApp::wxGetProfileInt	(	const wxString &	main,
		const wxString &	sub,
		int	default_
	)		const

Retrieves an integer value from the configuration.

Parameters:

main	The main path within the configuration.
sub	The sub-path within the configuration.
default_	The default integer to return if the configuration entry can't be read.

Returns:: The integer that is stored in /main/sub, or default_ if the entry couldn't be read.

wxString wxStfApp::wxGetProfileString	(	const wxString &	main,
		const wxString &	sub,
		const wxString &	default_
	)		const

Retrieves a string from the configuration.

Parameters:

main	The main path within the configuration.
sub	The sub-path within the configuration.
default_	The default string to return if the configuration entry can't be read.

Returns:: The string that is stored in /main/sub, or default_ if the entry couldn't be read.

void wxStfApp::wxWriteProfileInt	(	const wxString &	main,
		const wxString &	sub,
		int	value
	)		const

Writes an integer value to the configuration.

Parameters:

main	The main path within the configuration.
sub	The sub-path within the configuration.
value	The integer to write to the configuration.

void wxStfApp::wxWriteProfileString	(	const wxString &	main,
		const wxString &	sub,
		const wxString &	value
	)		const

Writes a string to the configuration.

Parameters:

main	The main path within the configuration.
sub	The sub-path within the configuration.
value	The string to write to the configuration.

The documentation for this class was generated from the following file:

src/stimfit/gui/app.h

Public Member Functions

Detailed Description

Member Function Documentation
