Represents the data within a file. More...

#include <recording.h>

Inheritance diagram for Recording:

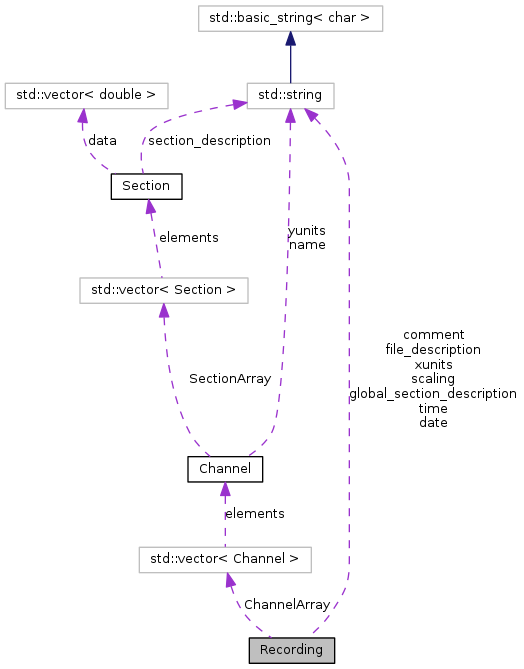

Collaboration diagram for Recording:

Public Member Functions
	Recording ()
	Default constuctor.
	Recording (const Channel &c_Channel)
	Constructor.
	Recording (const std::vector< Channel > &ChannelList)
	Constructor.
	Recording (std::size_t c_n_channels, std::size_t c_n_sections=0, std::size_t c_n_points=0)
	Constructor.
virtual	~Recording ()
	Destructor.
std::size_t	GetChannelSize (std::size_t n_channel) const
	Retrieves the number of sections in a channel.
const std::vector< Channel > &	get () const
	Retrieves the channels (read-only).
std::vector< Channel > &	get ()
	Retrieves the channels (read and write).
const std::string &	GetFileDescription () const
	Retrieves the file description.
const std::string &	GetGlobalSectionDescription () const
	Retrieves the common section description.
const std::string &	GetScaling () const
	Retrieves the scaling as a string.
const std::string &	GetTime () const
	Retrieves the time of recording as a string.
const std::string &	GetDate () const
	Retrieves the date of recording as a string.
const std::string &	GetComment () const
	Retrieves a comment string.
const std::string &	GetXUnits () const
	Retrieves the x units.
std::size_t	size () const
	Retrieves the size of the channel array.
double	GetXScale () const
	Retrieves the x scaling (sampling interval).
double	GetSR () const
	Retrieves the sampling rate ( 1 / x-scale )
const Channel &	at (std::size_t n_c) const
	Range-checked access to a channel (read-only).
Channel &	at (std::size_t n_c)
	Range-checked access to a channel (read and write).
void	SetFileDescription (const std::string &value)
	Sets the file description.
void	SetGlobalSectionDescription (const std::string &value)
	Sets the common section description.
void	SetScaling (const std::string &value)
	Sets the scaling as a string.
void	SetTime (const std::string &value)
	Sets the time of recording as a string.
void	SetDate (const std::string &value)
	Sets the date of recording as a string.
void	SetComment (const std::string &value)
	Sets a comment string.
void	SetGlobalYUnits (std::size_t n_channel, const std::string &value)
	Sets the y units for a channel.
void	SetXUnits (const std::string &value)
	Sets the x units.
void	SetXScale (double value)
	Sets the x scaling.
virtual void	resize (std::size_t c_n_channels)
	Resize the Recording to a new number of channels.
virtual void	InsertChannel (Channel &c_Channel, std::size_t pos)
	Insert a Channel at a given position.
void	CopyAttributes (const Recording &c_Recording)
	Copy descriptive attributes from another Recording to this Recording.
void	MakeAverage (Section &AverageReturn, Section &SigReturn, std::size_t channel, const std::vector< std::size_t > &section_index, bool isSig, const std::vector< int > &shift) const
	Calculates an average of several traces.
void	AddRec (const Recording &toAdd)
	Add a Recording at the end of this Recording.
Channel &	operator[] (std::size_t at)
	Unchecked channel access (read and write)
const Channel &	operator[] (std::size_t at) const
	Unchecked channel access (read-only)

Detailed Description

Represents the data within a file.

Contains an array of channels that can be accessed either via at() (range-checked, will throw an exception if out of range) or the []-operator (range unchecked). Moreover all the metadata such as time, date, samling rate and comments are stored here.

Constructor & Destructor Documentation

Recording::Recording ( const Channel & c_Channel ) [explicit]

Constructor.

Parameters:

c_Channel The Channel from which to construct a new Recording.

Recording::Recording ( const std::vector< Channel > & ChannelList ) [explicit]

Constructor.

Parameters:

ChannelList A vector of channels from which to construct a new Recording.

Recording::Recording	(	std::size_t	c_n_channels,
		std::size_t	c_n_sections = `0`,
		std::size_t	c_n_points = `0`
	)		`[explicit]`

Constructor.

Setting the number of channels and sections at construction time will avoid unnecessary memory re-allocations.

Parameters:

c_n_channels	The number of channels.
c_n_sections	The number of sections.
c_n_points	The number of sampling points per section.

Member Function Documentation

void Recording::AddRec ( const Recording & toAdd )

Add a Recording at the end of this Recording.

Parameters:

toAdd The Recording to be added.

const Channel& Recording::at ( std::size_t n_c ) const

Range-checked access to a channel (read-only).

Will throw std::out_of_range if out of range.

Parameters:

n_c	The index of the channel.

Returns:: The channel at index n_c.

Channel& Recording::at ( std::size_t n_c )

Range-checked access to a channel (read and write).

Will throw std::out_of_range if out of range.

Parameters:

n_c	The index of the channel.

Returns:: The channel at index n_c.

void Recording::CopyAttributes ( const Recording & c_Recording )

Copy descriptive attributes from another Recording to this Recording.

This will copy the file and global section decription, the scaling, time, date, comment and global y units strings and the x-scale.

Parameters:

c_Recording The Recording from which to copy the attributes.

const std::vector<Channel>& Recording::get ( ) const [inline]

Retrieves the channels (read-only).

Returns:: A vector containing the channels.

std::vector<Channel>& Recording::get ( ) [inline]

Retrieves the channels (read and write).

Returns:: A vector containing the channels.

std::size_t Recording::GetChannelSize ( std::size_t n_channel ) const

Retrieves the number of sections in a channel.

Parameters:

n_channel The index of the channel (range-checked).

Returns:: The number of sections in n_channel.

const std::string& Recording::GetComment ( ) const [inline]

Retrieves a comment string.

Returns:: A string containing a comment.

const std::string& Recording::GetDate ( ) const [inline]

Retrieves the date of recording as a string.

Returns:: A string containing the date of recording.

const std::string& Recording::GetFileDescription ( ) const [inline]

Retrieves the file description.

Returns:: The file description.

const std::string& Recording::GetGlobalSectionDescription ( ) const [inline]

Retrieves the common section description.

Returns:: The common section description.

const std::string& Recording::GetScaling ( ) const [inline]

Retrieves the scaling as a string.

Returns:: A string containing the description.

double Recording::GetSR ( ) const [inline]

Retrieves the sampling rate ( 1 / x-scale )

Returns:: The sampling rate.

const std::string& Recording::GetTime ( ) const [inline]

Retrieves the time of recording as a string.

Returns:: A string containing the time of recording.

double Recording::GetXScale ( ) const [inline]

Retrieves the x scaling (sampling interval).

Returns:: The x scaling.

const std::string& Recording::GetXUnits ( ) const [inline]

Retrieves the x units.

Returns:: The x units. Currently hard-coded to be "ms".

virtual void Recording::InsertChannel	(	Channel &	c_Channel,
		std::size_t	pos
	)		`[virtual]`

Insert a Channel at a given position.

Will throw std::out_of_range if range check fails.

Parameters:

c_Channel	The Channel to be inserted.
pos	The position at which to insert the channel (0-based).

Reimplemented in wxStfDoc.

void Recording::MakeAverage	(	Section &	AverageReturn,
		Section &	SigReturn,
		std::size_t	channel,
		const std::vector< std::size_t > &	section_index,
		bool	isSig,
		const std::vector< int > &	shift
	)		const

Calculates an average of several traces.

Parameters:

AverageReturn	The average will be returned in this variable by passing a reference. AverageReturn has to have the correct size upon entering this function already, it won't be resized.
SigReturn	The standard deviation will be returned in this variable by passing a reference if isSig == true. SigReturn has to have the correct size upon entering this function already, it won't be resized.
channel	The index of the channel to be used.
section_index	A vector containing the indices of the sections to be used for the average.
isSig	Set to true if the standard deviation should be calculated as well.
shift	A vector indicating by how many data points each section should be shifted before averaging.

Channel& Recording::operator[] ( std::size_t at ) [inline]

Unchecked channel access (read and write)

Use at() for range-checked access.

Parameters:

at	The channel index.

const Channel& Recording::operator[] ( std::size_t at ) const [inline]

Unchecked channel access (read-only)

Use at() for range-checked access.

Parameters:

at	The channel index.

virtual void Recording::resize ( std::size_t c_n_channels ) [virtual]

Resize the Recording to a new number of channels.

Resizes both the channel and the global y units arrays.

Parameters:

c_n_channels The new number of channels.

Reimplemented in wxStfDoc.

void Recording::SetComment ( const std::string & value ) [inline]

Sets a comment string.

Parameters:

value A string containing a comment.

void Recording::SetDate ( const std::string & value ) [inline]

Sets the date of recording as a string.

Parameters:

value A string containing the date of recording.

void Recording::SetFileDescription ( const std::string & value ) [inline]

Sets the file description.

Parameters:

value The file description.

void Recording::SetGlobalSectionDescription ( const std::string & value ) [inline]

Sets the common section description.

Parameters:

value The common section description.

void Recording::SetGlobalYUnits	(	std::size_t	n_channel,
		const std::string &	value
	)

Sets the y units for a channel.

Parameters:

n_channel	The channel index for which to set the units.
value	A string containing the y units.

void Recording::SetScaling ( const std::string & value ) [inline]

Sets the scaling as a string.

Parameters:

value A string containing the description.

void Recording::SetTime ( const std::string & value ) [inline]

Sets the time of recording as a string.

Parameters:

value A string containing the time of recording.

void Recording::SetXScale ( double value )

Sets the x scaling.

Note that setting the global x-scale will set it for all sections

Parameters:

value The x scaling.

void Recording::SetXUnits ( const std::string & value ) [inline]

Sets the x units.

Parameters:

value A string containing the x units.

std::size_t Recording::size ( ) const [inline]

Retrieves the size of the channel array.

Returns:: The size of the channel array.

The documentation for this class was generated from the following file:

src/libstfio/recording.h
